HKS F-CON S

注意

この情報群についての(株)ＨＫＳへの問い合わせを一切禁止する。

ec2-3-133-152-189.us-east-2.compute.amazonaws.com , 31839th

2003/06/03 UPDATED

初見

オークションで ¥15,000にてＧＥＴ。

　CPUは日立 H8/3062で、I/Oが２つの FPGAで制御されている。 8ピンのコンフィグROMを交換すると I/O制御をハードレベルで変更可能である。

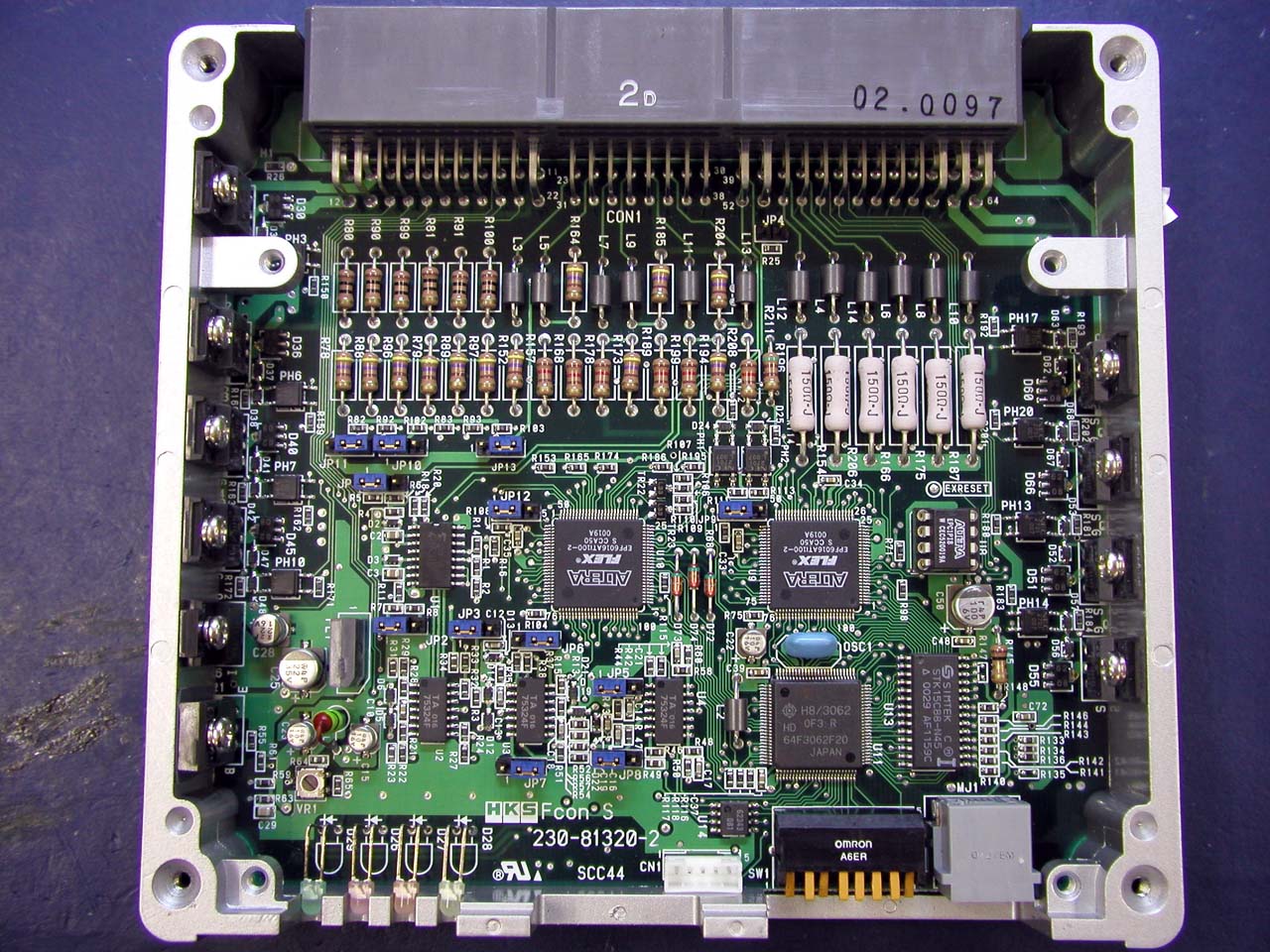

本体基板

コネクタ・ピン配置

灰色モジュラ(内側)　ＰＣ通信端子

1.
2. TxD (RS232C)
3. RxD (RS232C)
4.
5. GND
6.

エンジン側コネクタ
　本体:AMP #174518、26ピン: #917992、16ピン: #917981、22ピン: #917989

通信プロトコル

　8bitノンパリティ 38,400bpsの非同期通信で、固定長フレームである。
マップデータ等のアクセスは addressに直接データーメモリアドレスを指定して行う。 PowerFCのような項目番号のようなものは存在しない。

基本フレーム

offs(hex) +0 +1 +2 +3 +4 +5 +6 +7.... +17

to F-CON
to PC 0xa5 operation
  0x3a: Read
  0xb5: Write length 0x00 section
  0x02: Memory
  0xff: Monitor address
(BIG ENDIAN) datas[16] SUM

offs(hex)	+0	+1	+2	+3	+4	+5	+6	+7....	+17
to F-CON to PC	0xa5	operation 0x3a: Read 0xb5: Write	length	0x00	section 0x02: Memory 0xff: Monitor	address (BIG ENDIAN)	datas[16]	SUM

モニタアドレス

offs(hex) +0 +1 +2 +3 +4 +5 +6 +7

from F-CON Engine Speed Pressure
N - 1.00kg/cm² Throttle Activity Δ Throttle

unit [256rpm] [1rpm] [0.35kg/cm²] [0.35/256kg/cm²] [25.6%] [0.1%] [25.6%] [0.1%]

+8 +9 +a +b +c +d +e +f

MAFS #1 MAFS #2 - Vehcle Speed

[256mV] [1mV] [256mV] [1mV] - [256km/h] [1km/h]

+10 +11 +12 +13 +14 +15 +16 +17

A/F F Main in F Sub in -

[2.56] [0.01] [256μs] [1μs] -

+18 +19 +1a +1b +1c +1d +1e +1f

F Main out F Sub out - AIC out

[256μs] [1μs] [256μs] [1μs] - [256μs] [1μs]

+20 +21 +22 +23 +24 +25 +26 +27

- AIC disable Battery Voltage Option #1

- [256μs] [1μs] [2.56V] [0.01V] [256mV] [1mV]

+28 +29 +2a +2b +2c +2d +2e +2f

Option #2 Water Temprature Intake Air Temp. F total I total

[256μs] [1μs] [256ºC] [1ºC] [256ºC] [1ºC] [1] [0.5]

+30 +31 +32 +33 +34 +35 +36 +37

A total F corr.A F corr.B F W.Temp. F I.Temp. F GCC F VPC F SBC

[1] [1] [1] [1] [1] [1] [1] [1]

+38 +39 +3a +3b +3c +3d +3e +3f

I Accel. A W.Temp. A I.Temp. SBC Timer - -

[0.5] [1] [1] [1] - -

offs(hex)	+0	+1	+2	+3	+4	+5	+6	+7
from F-CON	Engine Speed	Pressure N - 1.00kg/cm²	Throttle Activity	Δ Throttle
unit	[256rpm]	[1rpm]	[0.35kg/cm²]	[0.35/256kg/cm²]	[25.6%]	[0.1%]	[25.6%]	[0.1%]
	+8	+9	+a	+b	+c	+d	+e	+f
MAFS #1	MAFS #2	-	Vehcle Speed
[256mV]	[1mV]	[256mV]	[1mV]	-	[256km/h]	[1km/h]
+10	+11	+12	+13	+14	+15	+16	+17
A/F	F Main in	F Sub in	-
[2.56]	[0.01]	[256μs]	[1μs]	-
+18	+19	+1a	+1b	+1c	+1d	+1e	+1f
F Main out	F Sub out	-	AIC out
[256μs]	[1μs]	[256μs]	[1μs]	-	[256μs]	[1μs]
+20	+21	+22	+23	+24	+25	+26	+27
-	AIC disable	Battery Voltage	Option #1
-	[256μs]	[1μs]	[2.56V]	[0.01V]	[256mV]	[1mV]
+28	+29	+2a	+2b	+2c	+2d	+2e	+2f
Option #2	Water Temprature	Intake Air Temp.	F total	I total
[256μs]	[1μs]	[256ºC]	[1ºC]	[256ºC]	[1ºC]	[1]	[0.5]
+30	+31	+32	+33	+34	+35	+36	+37
A total	F corr.A	F corr.B	F W.Temp.	F I.Temp.	F GCC	F VPC	F SBC
[1]	[1]	[1]	[1]	[1]	[1]	[1]	[1]
+38	+39	+3a	+3b	+3c	+3d	+3e	+3f
I Accel.	A W.Temp.	A I.Temp.	SBC Timer	-	-
[0.5]	[1]	[1]	[1]	-	-
