ROM Capacity Contents

• Main Program ROM 27C4096 x8 .... 32M BIT(4M Byte)
• Character ROM KM23C32000 x8 ....256M BIT(33M Byte)
• Music CPU ROM 27C1000 x2 .... 2M BIT(512K Byte)
• Q-Sound Wave ROM HN624316 x2 .... 64M BIT(8M Byte)
  Total Capacity 354M BIT(46M Byte)

Vampire User's Manual

*Title

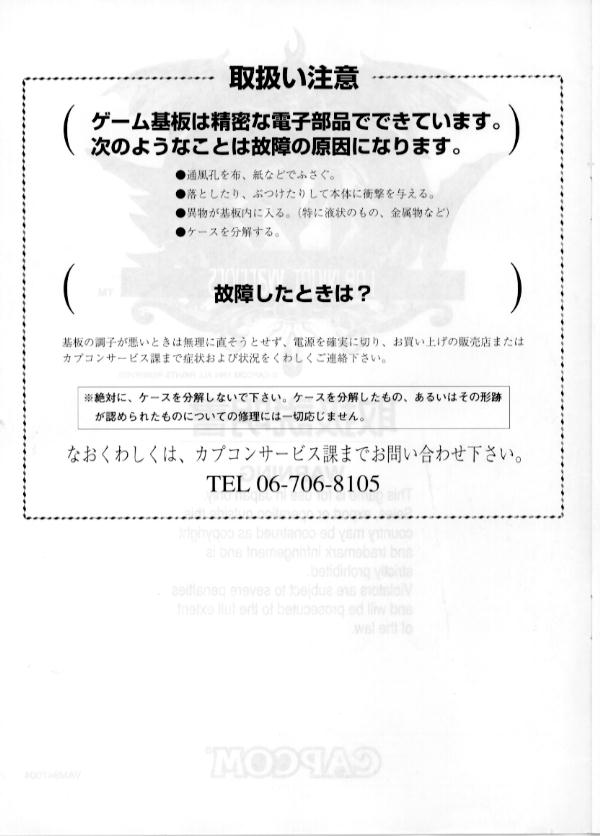

*Caution

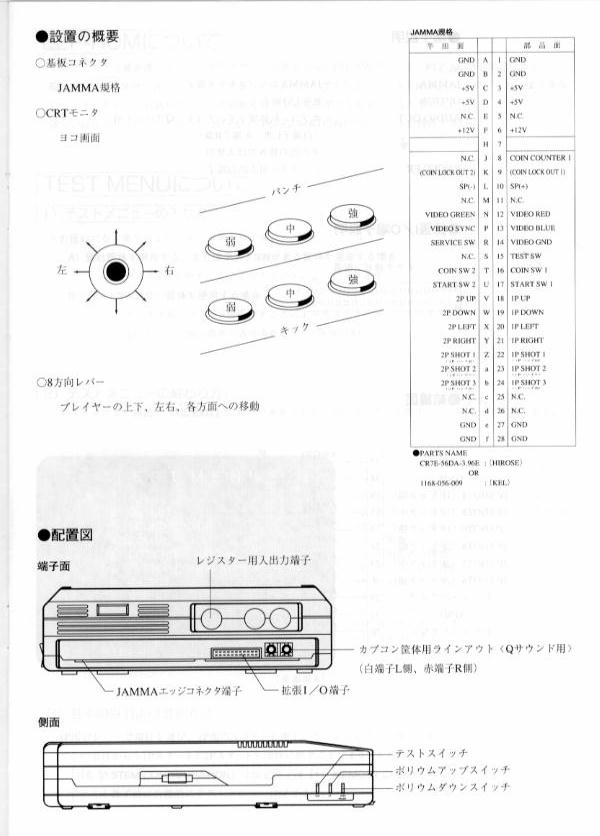

*Install Overview

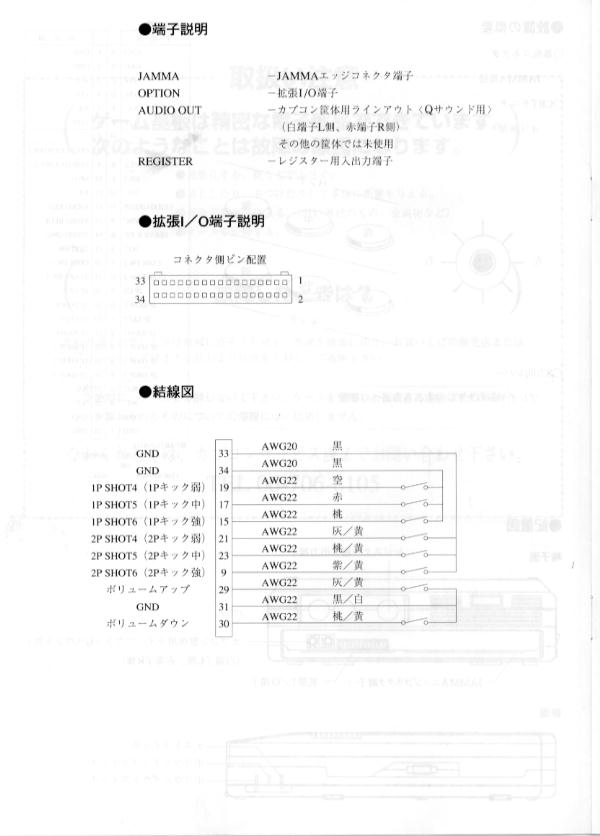

*I/O Connecter Description

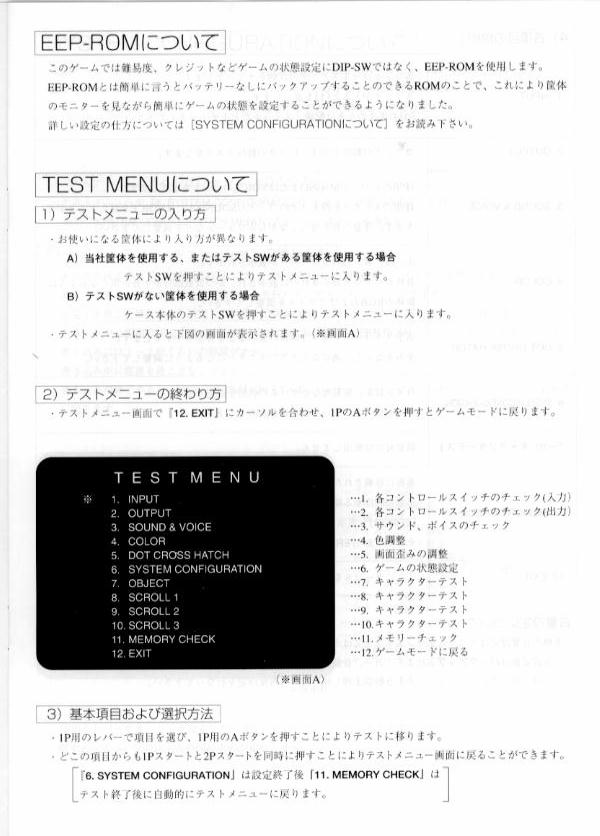

*About EEPROM, Test-Menu

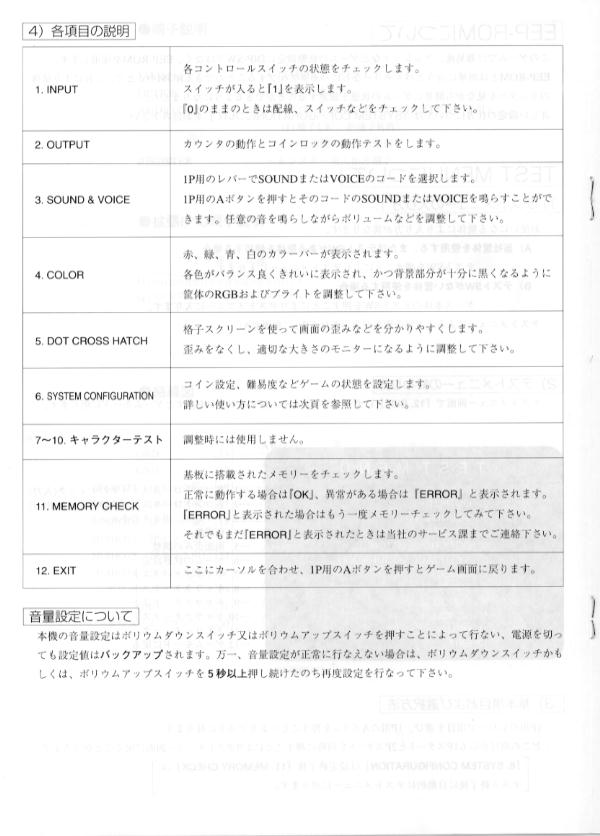

*About Test-Menu

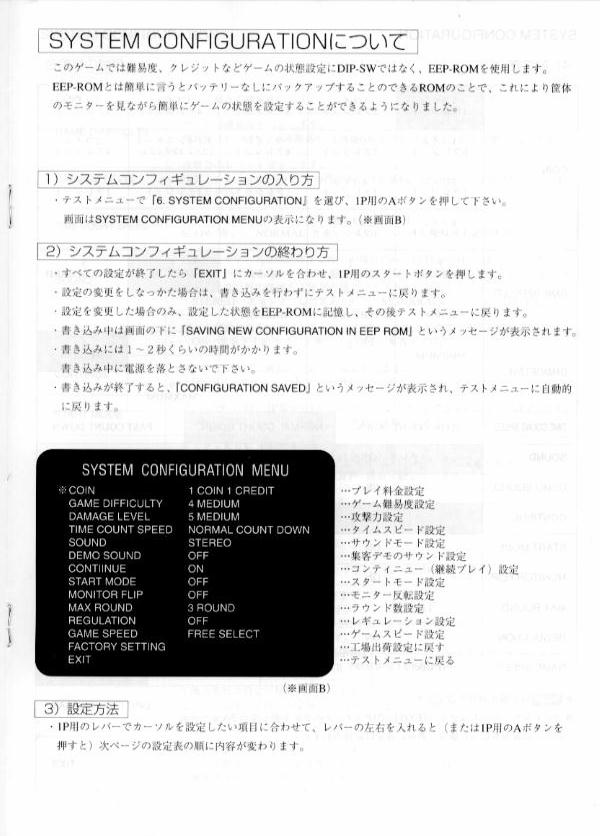

*About System Configuration

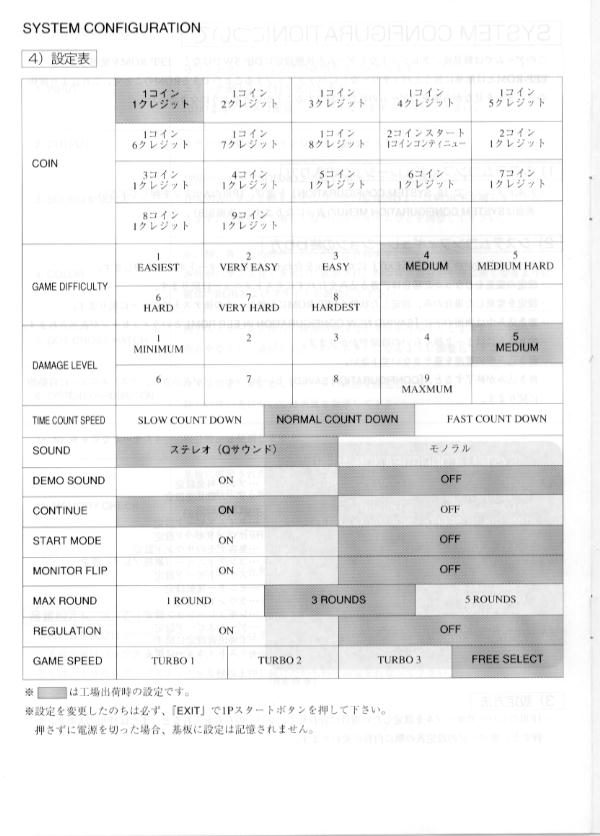

*System Configuration2(continued)

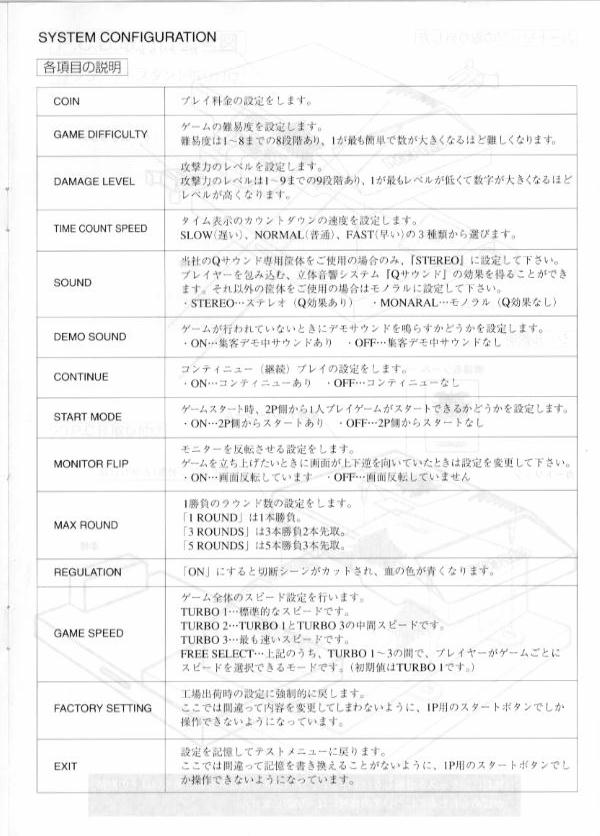

*System Configuration3(continued)

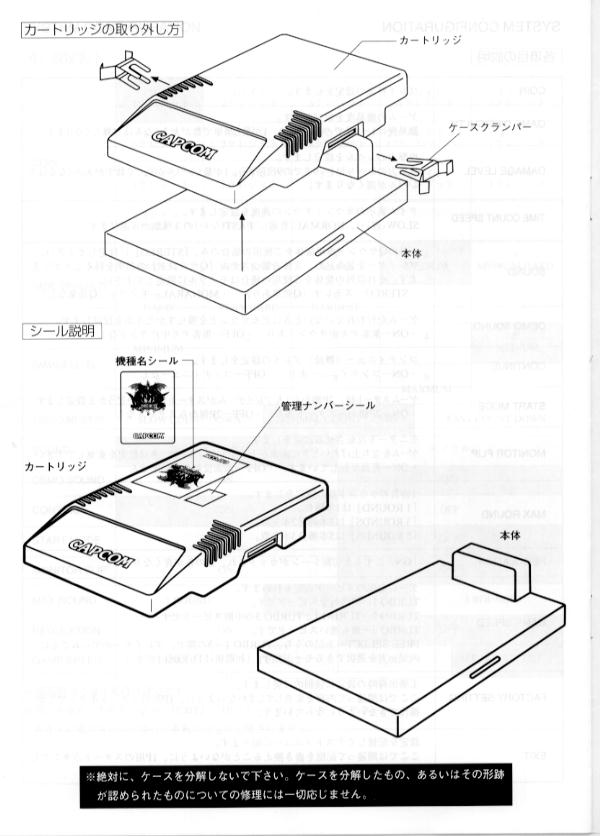

*How to remove ROM-Cartridge

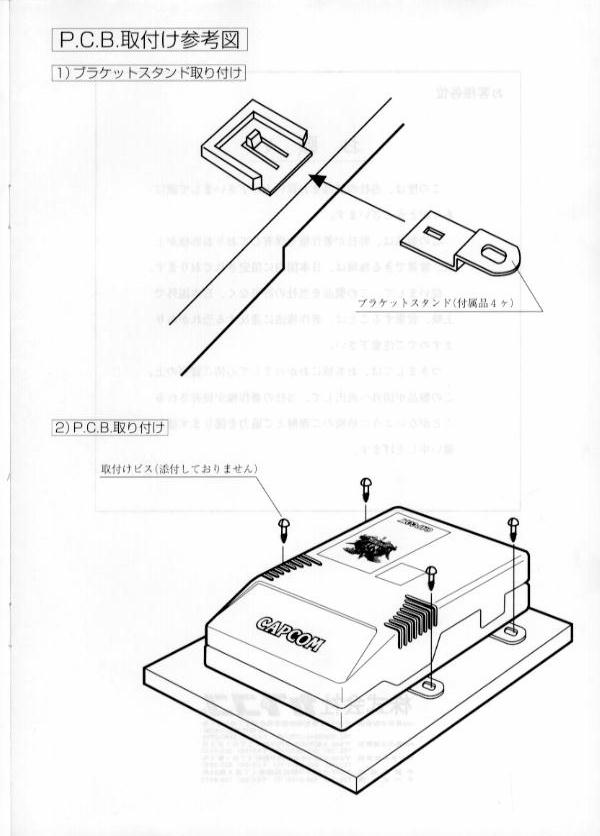

*Mounting PCB

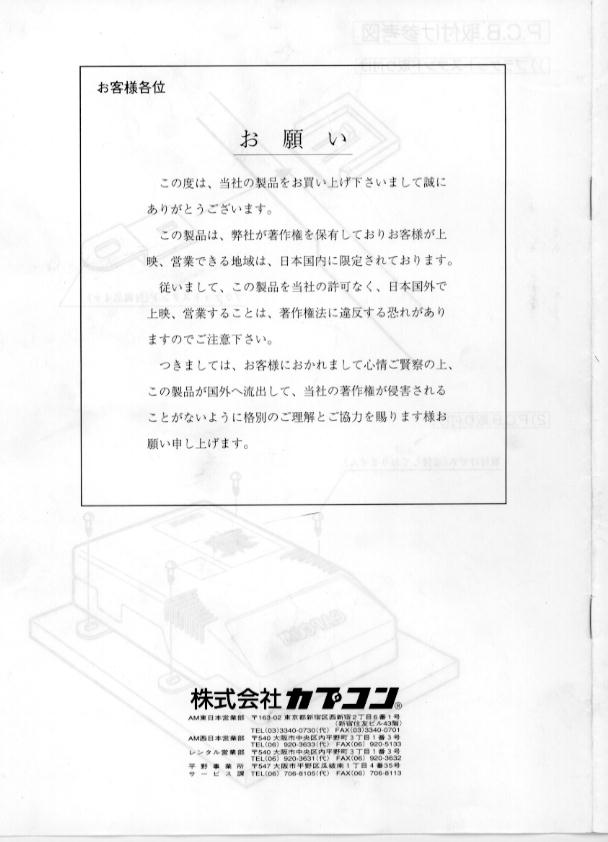

*Warning

---
